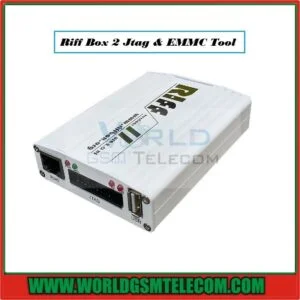

Riff Box 2 Jtag & EMMC Tool

Original price was: ₨ 14,000.Current price is: ₨ 10,000.

Compare

Description

Description

RIFF Box 2 hardware is designed to accommodate a large variety of communication protocols.
RIFF Box 2 – Hardware Specification:
Dual-core Cortex-M4 MCU @ 204MHz
PC to Box USB (Device) Speed: Hi-Speed (480 Mbps)
Box to Device (Host) Speed: Full-Speed (48 Mbps)
SD/MMC Interface with 1-Bit (DAT0) and 4-Bit (DAT0-DAT3) Bus Width support and SD_CLK up to 52 MHz
UART Interface
RIFF™ Smart Probing Feature
Level-adjustable 23 GPIO Lines (1.65V to 3.6V) for interfacing a range of devices and protocols, such as NAND, SPI, I2C, Pin Finder, etc.
4 fixed 3.3V GPIO Lines
RIFF Box 2 – Interface Specifications:

20-Pin Male Connector:
JTAG Interface: TRST, TDI, TMS, TCK, RTCK, TDO and NRST
SWD (Serial Wire Debug) Interface: SWCLK, SWDIO (SWDIO and SWCLK are overlaid on the TMS and TCK pins)
30-Pin Male Connector:
SD/MMC Interface 1/4Bit @ 52MHz
Level-adjustable 23 GPIO Lines (1.65V to 3.6V)
USB Device Connector: connects the Box with PC @ Hi-Speed (480 Mbps), approx. 20 MByte/sec
USB Host Connector: connects the Box with USB devices @ Full-Speed (48 Mbps), approx. 1.5-2 MByte/sec
RJ-45 Connector:
6.1 RIFF™ Smart Probing Feature
6.2 UART Port
6.3 4 Fixed 3.3V GPIO Lines
RIFF Box 2 – Supported SD/MMD Revisions:

Revisions 1.0 to 1.7 (for MMC: v4.0, v4.1, v4.2, v4.3, v4.41, v4.5, v4.51, v5.0) and higher
RIFF Box 2 – Supported JTAG Cores:

ARM7
ARM920
ARM926
ARM946
ARM7EJS
ARM11
CORTEX-A5
CORTEX-A8
CORTEX-A9
CORTEX-A15
OMAP3430
OMAP3630
OMAP4430
TEGRA2 (CORTEX-A9)
TEGRA2 (ARM7)
QUALCOMM S3 (ARM7, ARM11, SCORPION)
QUALCOMM S4 (ARM7, ARM11, SCORPION)
NOVATHOR
PXA270
PXA312
MIPS32™ IR5Bit
MIPS32™ IR8Bit
RIFF Box 2 – Software:

RIFF JTAG Manager

RIFF Remote helper
RIFF Admin client / SN reader
RIFF Box USB drivers
New software is fully compatible with Windows 10, which provides effortless installation. Just connect RIFF Box to Windows 10-based PC and everything will be installed automatically. For older Windows versions, there are custom drivers provided with RIFF JTAG Manager installer.

RIFF Box 2 – Package Content *:

Riff Box 2 – 1 pc.
Flat Cables – 3 pcs.

Additional information

Weight0.5 kg
