Description

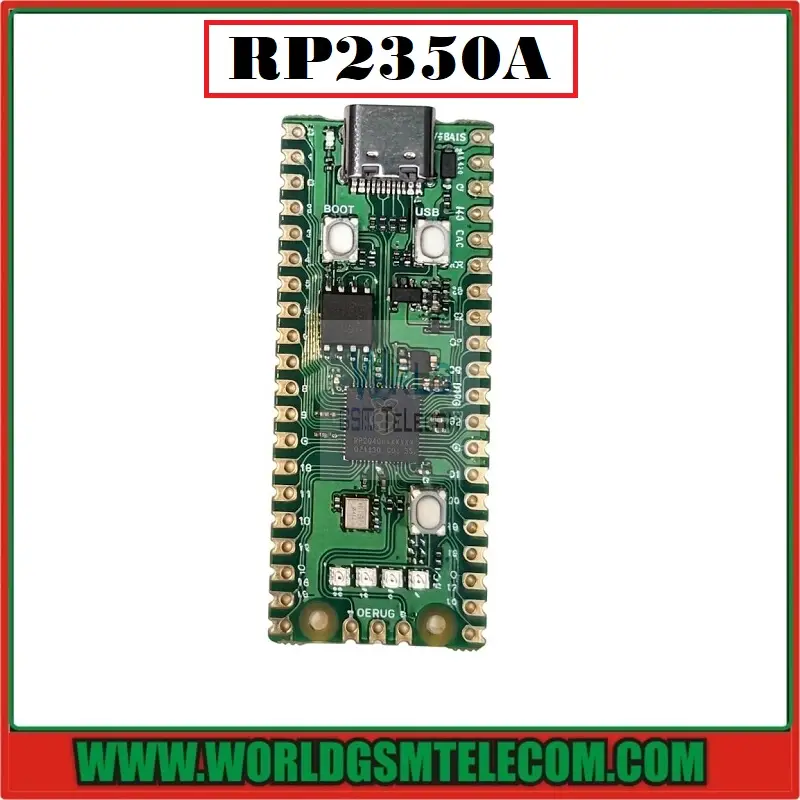

This board is a Raspberry Pi Pico 2 Development Board (featuring the RP2350 microcontroller).
Although the text overlay at the top reads “RP2350A” (referring to the RP2350A chip variant package), note that the physical chip printed on this specific PCB variant is labeled RP2040.
Key Technical Specifications
Processor: Dual ARM Cortex-M33 / Hazard3 RISC-V cores @ 150 MHz (selectable/dual-architecture)
SRAM: 520 KB on-chip SRAM
Flash Memory: 4 MB onboard QSPI Flash
USB Interface: USB-C connector (for power, programming, and USB 1.1 Host/Device communications)
Onboard Controls: BOOT button, USB / RESET button
I/O Capabilities:
26 multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART
3 × 12-bit ADC channels
16 × PWM channels
12 × Programmable I/O (PIO) state machines for custom peripheral emulation
