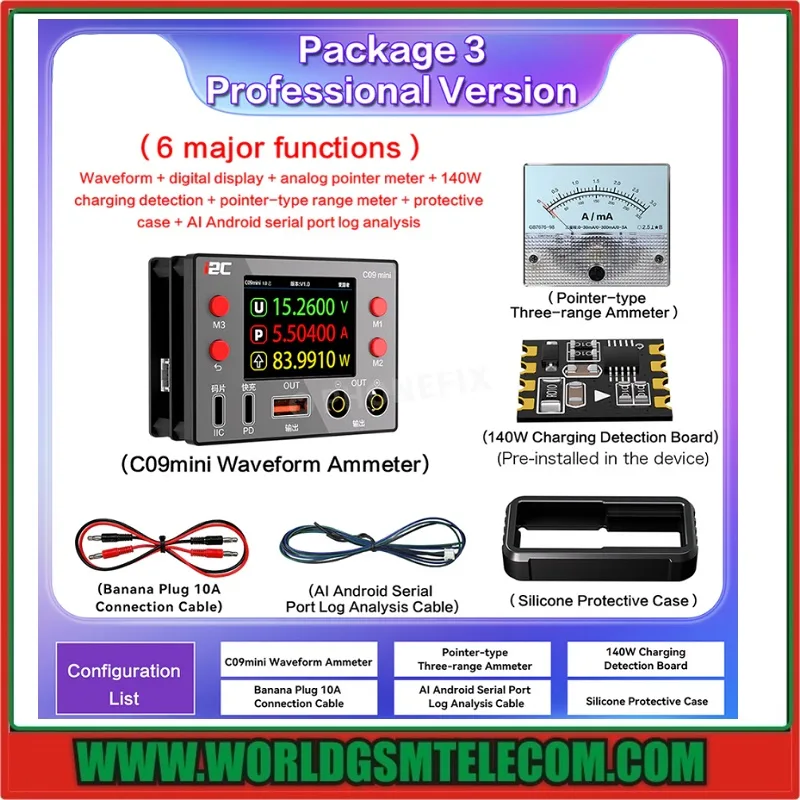

i2C C09mini Package 3 Professional Edition Waveform Ammeter
Description
i2C C09mini Package 3 Professional EditionWaveform Ammeter supports iPhone 5-17 Pro MaxIIC baseband chip read/write, Power-on current waveform monitoring, Android boot log analysis, charging data analysis, Type-C PD fast charging, and supports mobile phones, iPads, Switches, drones, and other devices. i2C C09 Mini Ammeter offers waveform, PWM Pointer Meter, and digital display modes, and supports screen mirroring from a computer.
Option:
1. Package 1: Basic Edition.
2. Package 2: Charging Edition.
3. Package 3: Professional Edition. available
Features:
1. Startup Current Waveform Monitoring: Real-time monitoring of current fluctuations during device startup, quickly determining the motherboard’s operating status.</p><p>8. Cross-Device Integration: Supports computer screen projection, transforming the device into a workstation for enhanced operational convenience.
Product parameters:
Name: i2C C09-mini Waveform Current Meter
Input voltage DC: 0-36V
Detection current: 0-8A
Protection voltage: <60V
Protection current: <15A
Banana plug output-voltage and current: 40V 8A
USB output voltage and current: 20V 2A
Voltage resolution: 1mv
Current resolution: 0.1ma
Product size: 56x76x27.3mm
Current accuracy: 100 microamps
Screen size: 2.0 inches
Screen resolution: 320×480
Device power supply: 5V 2A
Two-channel voltage measurement: 0-36V
